Characteristics and applications
SWP-F universal coupling : the bearing is vulnerable. In order to facilitate the replacement of bearings, bearing cover made of split bolt connection, can work under the conditions of beta less than 5 -10 degrees. It can be applied to rolling machinery, lifting and transportation machinery, construction machinery, mining machinery, petroleum machinery and other heavy machinery, connecting two different axes of shafting transmission, not buffering and damping. Related products
A - telescopic long type;
B - telescopic short type;
C - non - telescopic short type;
D - non - telescopic long type;
E - telescopic double flange long type;
F - large telescopic long type;
ZG - straight through type
FG - reverse through type

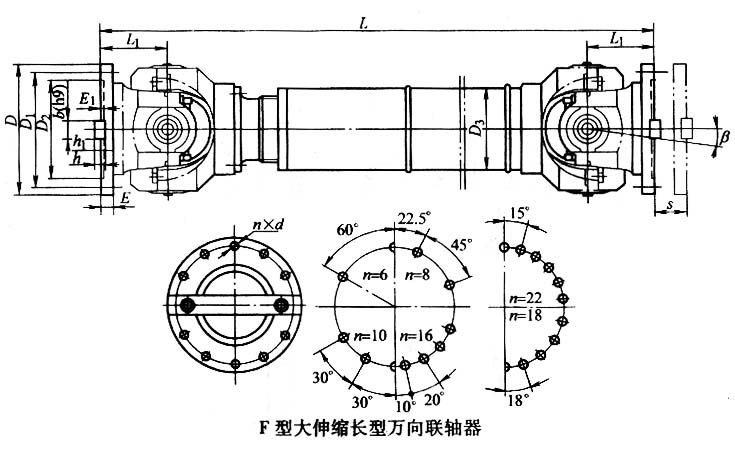

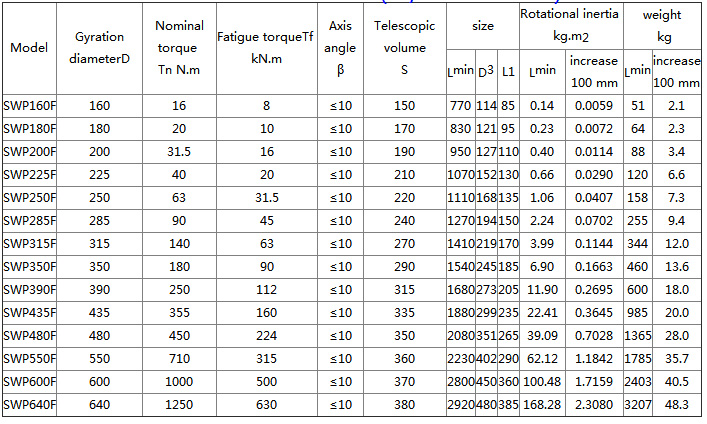

SWP-F large retractable single type universal coupling Basic Parameters And Main Dimensions(JB/T 3241-2005)mm
|
