Characteristics and applications
JZM lamina coupling: compared with metal elastic element flexible coupling, it has the characteristics of high mechanical strength, large load capacity, light weight, small size, high transmission efficiency and transmission accuracy, good reliability, convenient assembly and disassembly. It is suitable for middle, high speed and large torque shafting transmission. Compared with drum gear coupling, it has the advantages of no relative sliding, no lubrication, long service life, no noise and simple structure. It can partly replace drum gear coupling. It is not affected by temperature and oil. It has the characteristics of acid, alkali and anticorrosion. Can be used for high temperature, low temperature and oil, water and corrosive medium conditions. The drive shaft is suitable for all kinds of mechanical device loads a little change, strong universality, has been widely used in industrial developed countries, is a high performance flexible application of our focus on coupling unrelenting, high precision diaphragm coupling can be used for high speed working conditions. Compared with the toothed coupling, the diaphragm coupling has no relative sliding, no lubrication and seal, no noise, no need to repair, and it is easy to manufacture. It can partly replace the toothed coupling. Diaphragm couplings have been widely applied in the developed countries. In practice, the intermediate shaft type is usually adopted to improve the two axis offset compensation performance.
Related products
JZM - basic type;
JZMJ - intermediate shaft type;

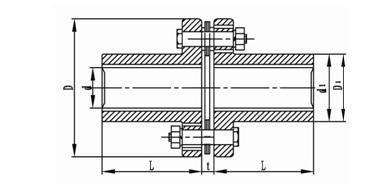

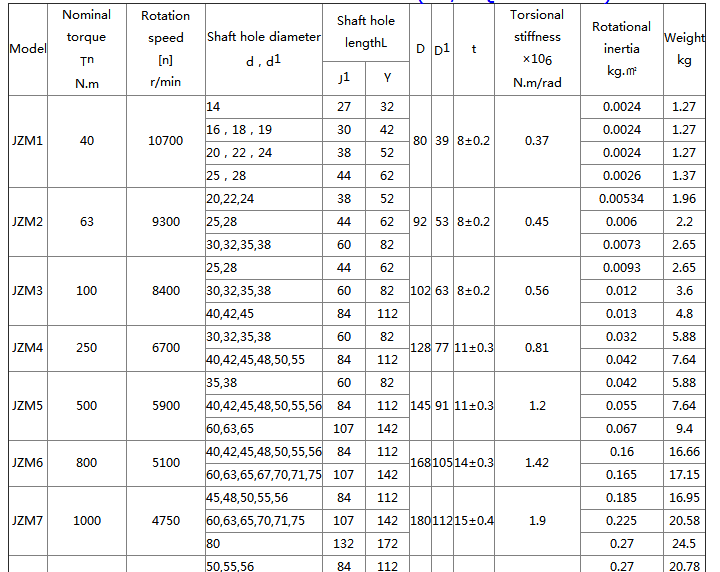

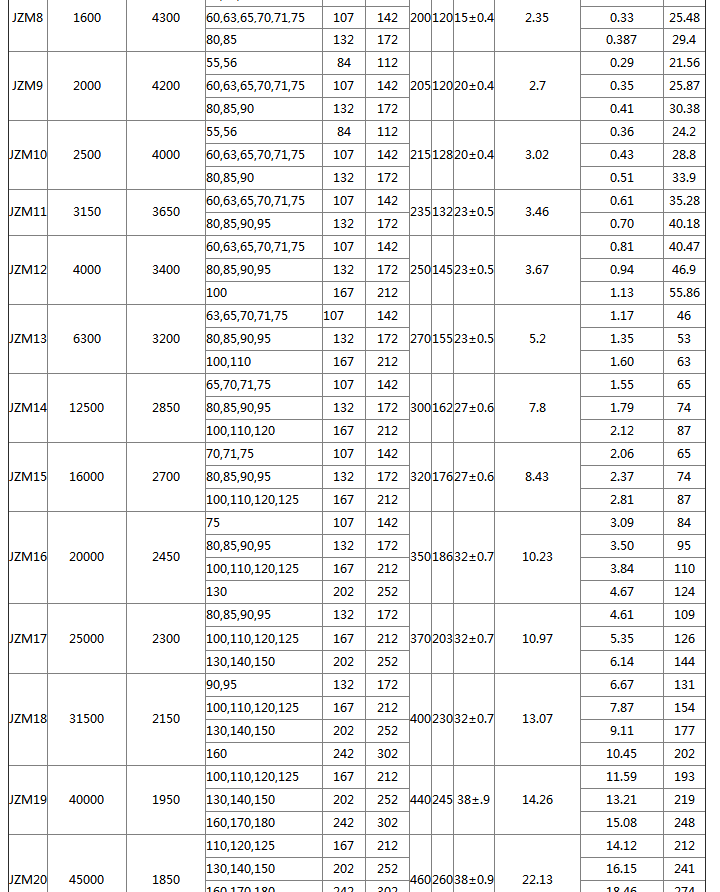

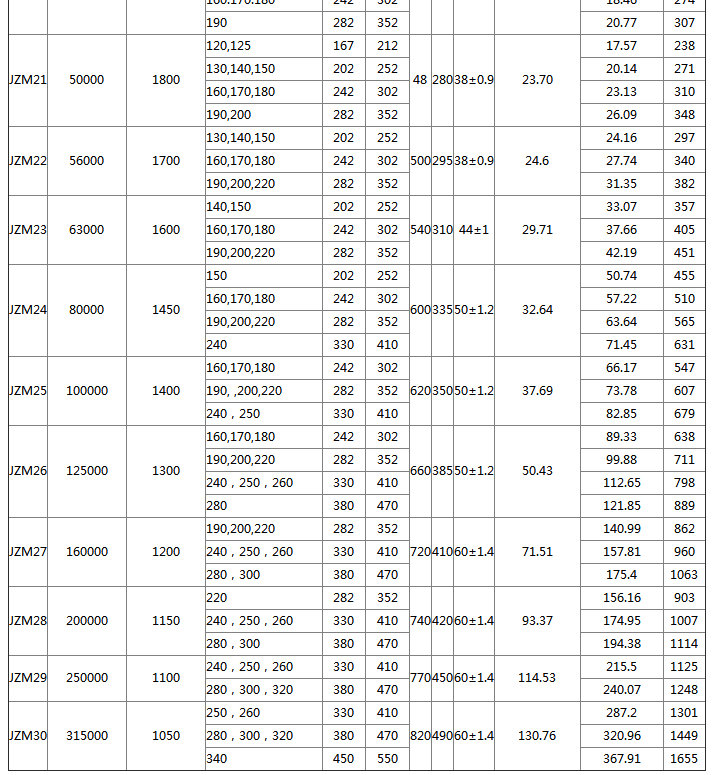

JZM lamina coupling for heavy duty machinery Basic Parameters And Main Dimensions： (JB/ZQ 4717-98) mm

Note:
1. the moment of inertia and mass in the table is calculated with the length of the axis of each model J1 and the shaft extension.
2. The working environment temperature of the coupling is -20 ~ +250.
|
