Characteristics and applications
TLL (LTZ) elastic sleeve coupling : with compensation of two axis offset and relative damping and buffering performance, simple structure, easy manufacture, convenient maintenance, no lubrication, radial large size, suitable for mounting on the rigid base, high precision, little impact load, the drive shaft is not high on the damping the requirements of the broad scope of application, is China's first standard couplings. It is not applicable to high speed and low speed heavy load conditions. Related products
TL - basic type;
TLL - with brake wheel type;

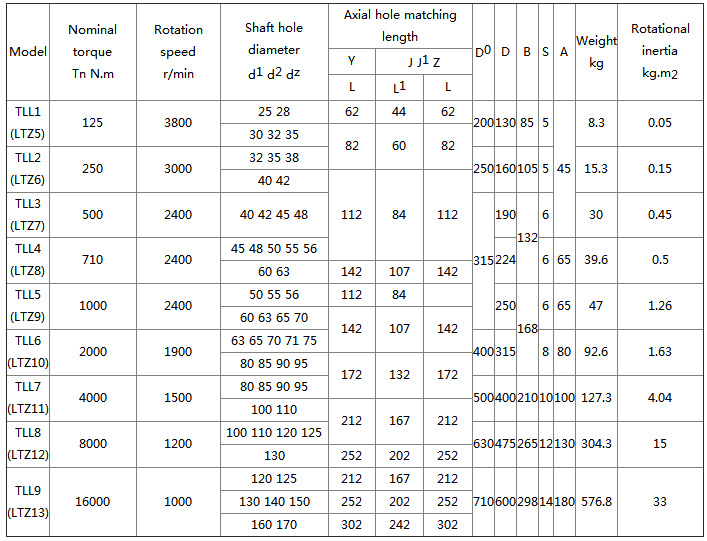

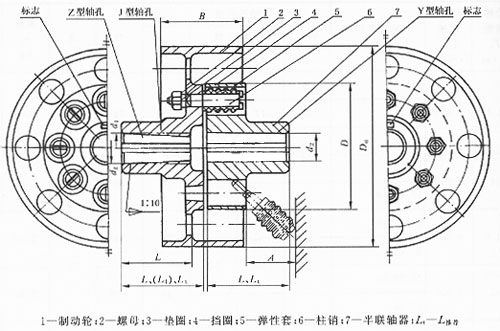

TLL (LTZ) elastic sleeve coupling with brake wheel Basic Parameters And Main Dimensions:(GB/T 4323-84<2002>)mm
 |
