Characteristics and applications
The Falk Steelflex T31 Grid Coupling is a general purpose, full spacer coupling engineered to provide the economy and high torque capacity of a gear coupling combined with the torsional flexibility of an elastomeric coupling. Backed by a 5 year lubrication warranty, the Falk T31 Steelflex coupling requires no periodic maintenance when lubricated with Falk LTG grease at installation. The T31 Steelflex Coupling features a complete center section engineered to drop out for easy service of connected equipment bearings and seals and is ideal for pump applications. Available in 19 sizes ranging from 1020T through 1200T, the T31 Full Spacer Steelflex Coupling is engineered to accomodate torque loads up to 1,650,000 (lb-in) and shaft diameters up to 20.88 inches. Click below to configure the T31 Steelflex Grid coupling specific to your application.

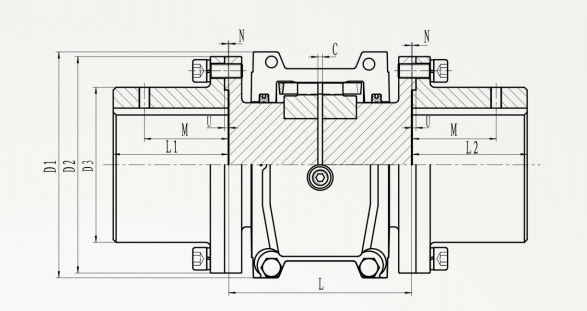

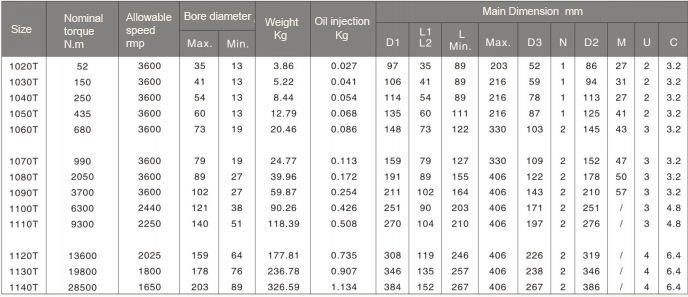

Falk T31 Steelflex Grid Couplings Basic Parameters And Main Dimensions   |
