Structural Types of Disc Couplings

时间:18-07-05

JMI

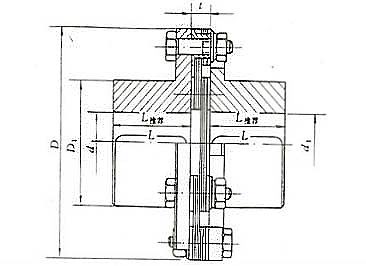

Basic Type of Disc Coupling:
Only applicable for angular and axial deviation.
Torque range: 40-315000N·m
JMIJ

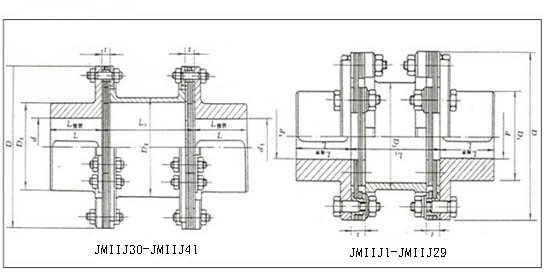

Disc Coupling with Joint Pipe Type:
The length of joint pipe can be customized to meet the requirements of long shaft end clearance.
Torque range: 63-2000000N·m
JMII

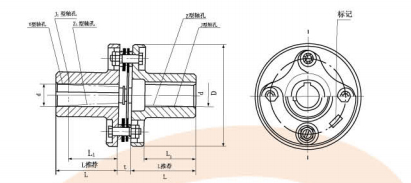

Single Halves of Anti-mounted Type of Disc Coupling:
This type of disc coupling can adapt to different shaft end clearance.
Torque range: 6.3-16N·m
JMIIJ

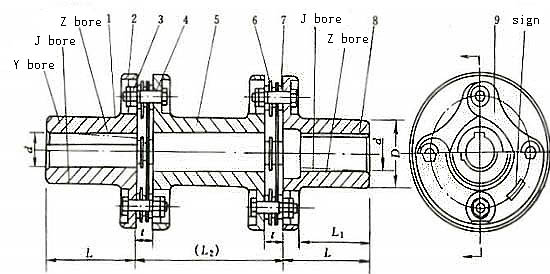

Double Halves of Anti-mounted Type of Disc Coupling:
This type of disc coupling can adapt to different shaft end clearance.
Torque range: 6.3-16N·m
