Structural Types of Universal Joints

(1) UC Series



Bearings of universal joints are not fixed with bolts in case they become loose or even fractured. Therefore, UC series are applied for improving strength of these weak points, prolonging service life and facilitating maintenance. Based on different requirements, UC series has 7 structure types.

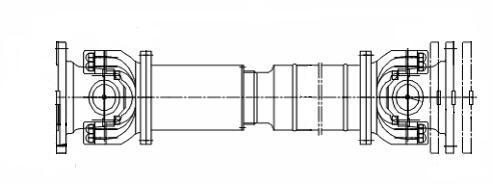

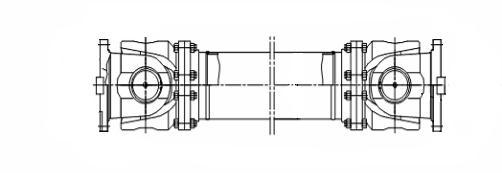

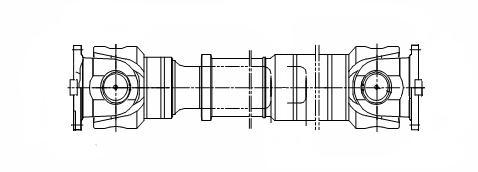

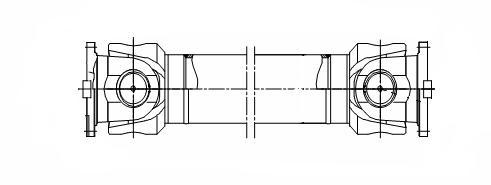

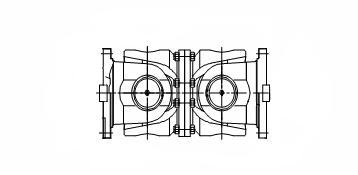

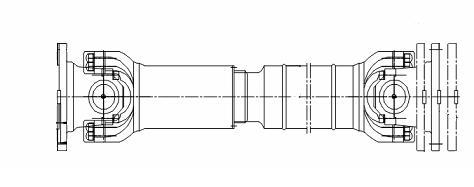

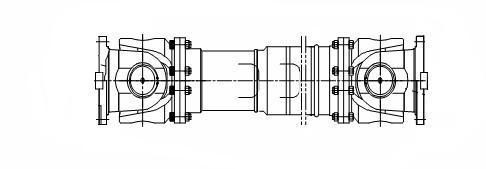

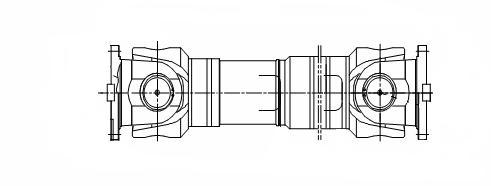

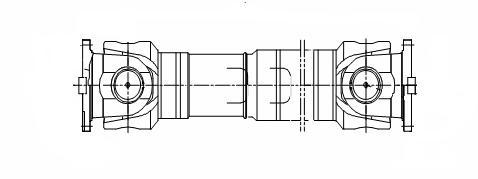

Structure Name	Structure Code	Structure Drawing
Standard Telescopic Type	BH
Standard Telescopic Flanged Type	BF
Short telescopic Welded Type	DH
Long Telescopic Welded Type	CH
Non-stretch Welded Type	WH
Non-stretch Flanged Type	WF
Non-stretch Short Type	WD

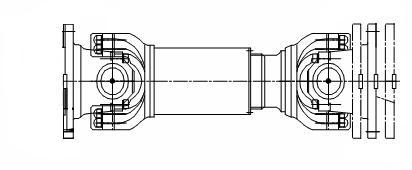

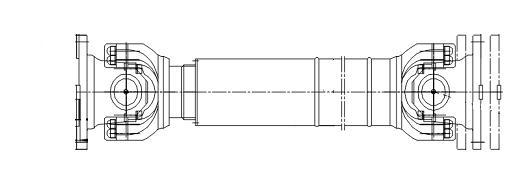

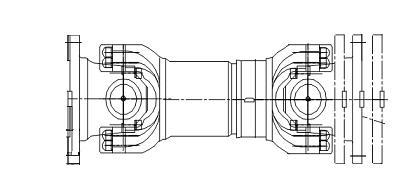

(2) SWP Series



For universal joints, bearings are quick-wear parts. UP series are created in consideration of this. Glands are made into partitions for easily changing bearings in a better way. In UP series, there are total 11 structure types in view of different requirements.
