ZLD (LZD) conical hole flexible pin coupling

Characteristics and applications
ZLD (LZD) flexible pin coupling : it can compensate the relative offset, damping function, the transmission accuracy is low, the transmission torque is large, compared with the gear coupling has the advantages of simple structure, light weight, convenient manufacture, convenient maintenance, no lubrication, instead of gear coupling, large noise, suitable for large and the torque transmission shaft, not suitable for high  damping effect to noise and to strictly control the position.

Related products
   ZL - basic type;
   ZLD - Conical pass (connected with motor);
   ZLZ - intermediate shaft type;
   ZLL - with belt brake wheel type;

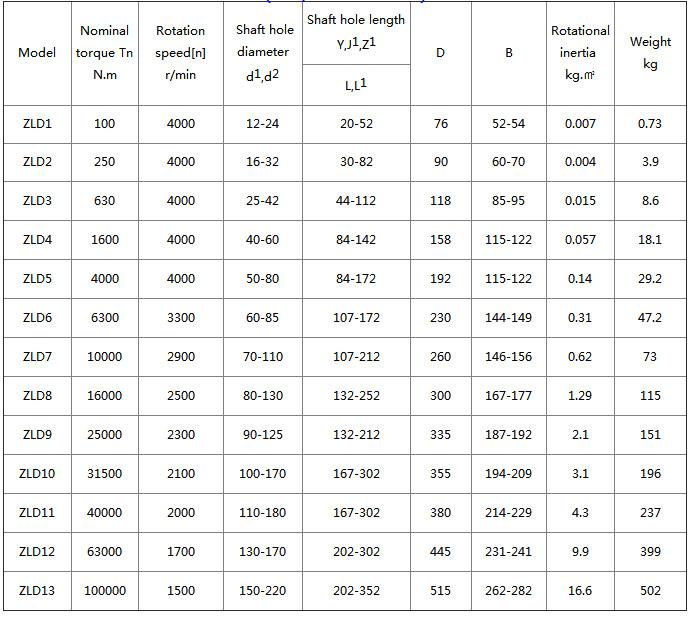

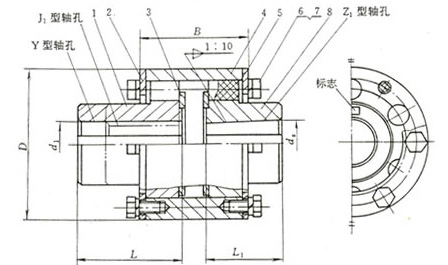

ZLD (LZD) conical hole flexible pin coupling Basic Parameters And Main Dimensions:(GB/T 5015-85) mm
