ML (LM) plum shaped elastic coupling

Characteristics and applications
ML (LM) plum shaped elastic coupling : compensate the relative deviation, damping and buffering property, small radial dimension, simple structure, no lubrication, high bearing capacity, maintenance, replacement mobile axial elastic elements (except for the MLS type), and is suitable for connecting a coaxial line, starting frequently. Positive change, medium speed and medium torque transmission shaft and requires high reliability work site. It is not suitable for heavy load, low speed and axial size by hardship, the replacement of elastic components of the two axes to the difficult position.

Related products
      ML - basic type;
      MLL-II - split type brake wheel type;
      MLL-I - integral brake wheel type;
      MLZ - single flanged disc;
      MLS - double flange disc;

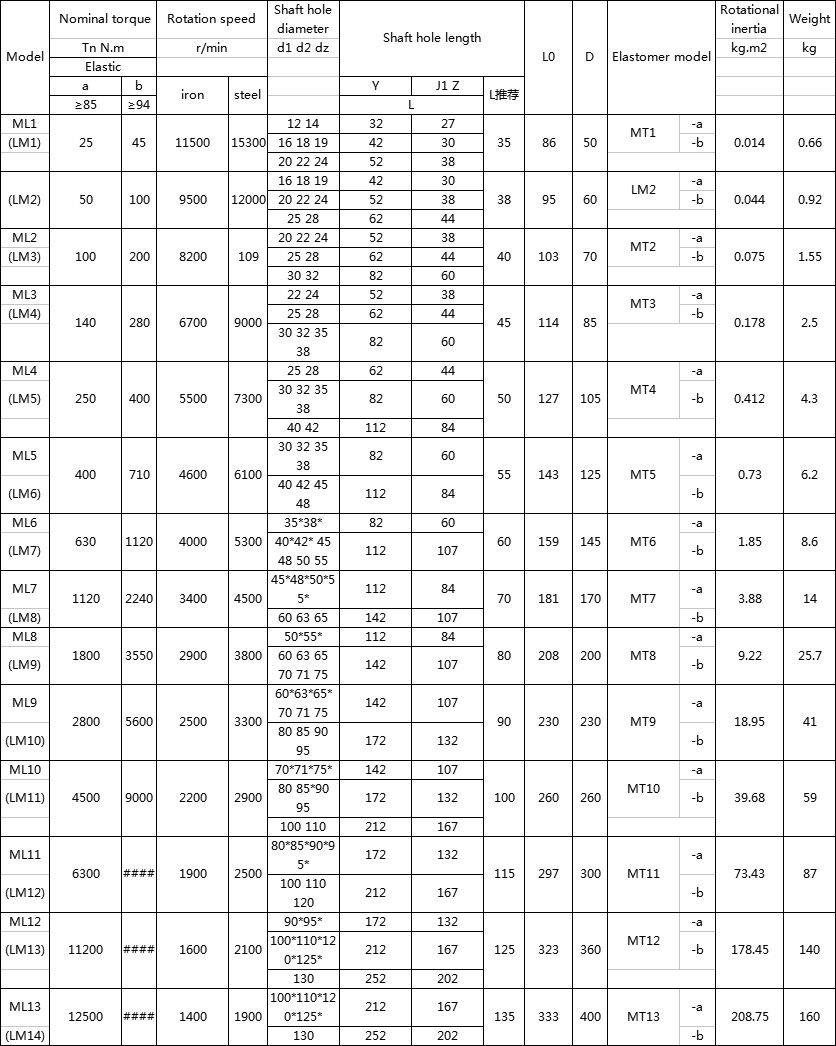

ML (LM) plum shaped elastic coupling Basic Parameters And Main Dimensions:(GB/T 5272-2002) mm
