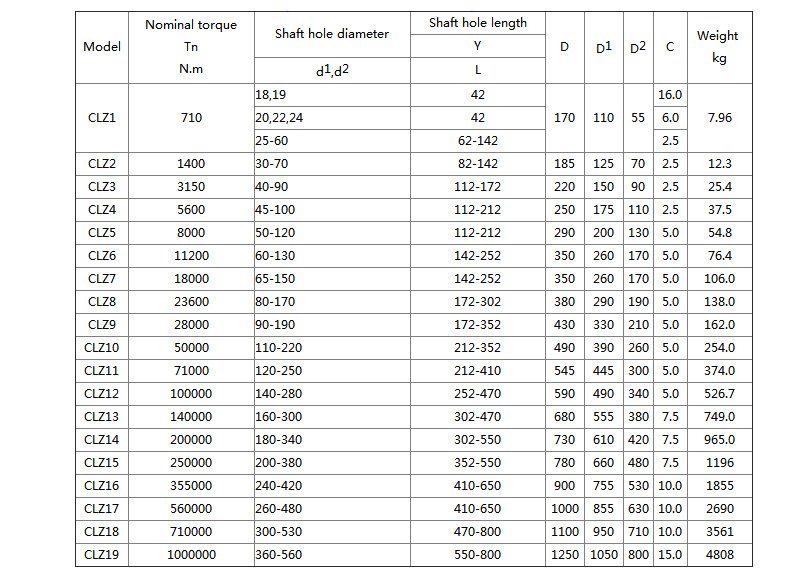

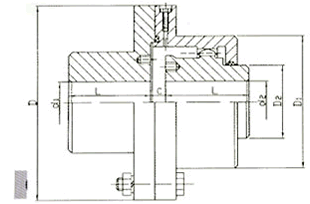

CLZ intermediate shaft gear coupling

Characteristics and applications

CLZ type gear coupling : with a small amount of axis offset compensation performance, can not be buffered and vibration damping. Small size, large torque transmission in theory, need to be lubricated and sealed, but the noise is large and the price is expensive. It is used to connect the two coaxial axis transmission. It is used for connecting horizontal two coaxial lines under low speed and heavy load conditions, such as metallurgical machinery, heavy machinery and so on. CL and CLZ are straight toothed teeth. They are used for low-speed heavy duty, two horizontal shaft connection, straight tooth type compensation performance is poor, and they are eliminated varieties, which have been replaced by drum tooth type, and should not be used again.

Related products

       CL - the straight gear basic type is used for the direct connection of the two auxiliary ends.

       CLZ type, straight gear intermediate shaft type is used for two axis long distance connection
