Characteristics and applications
CL type gear coupling : with a small amount of axis offset compensation performance, can not be buffered and vibration damping. Small size, large torque transmission in theory, need to be lubricated and sealed, but the noise is large and the price is expensive. It is used to connect the two coaxial axis transmission. It is used for connecting horizontal two coaxial lines under low speed and heavy load conditions, such as metallurgical machinery, heavy machinery and so on. Related products

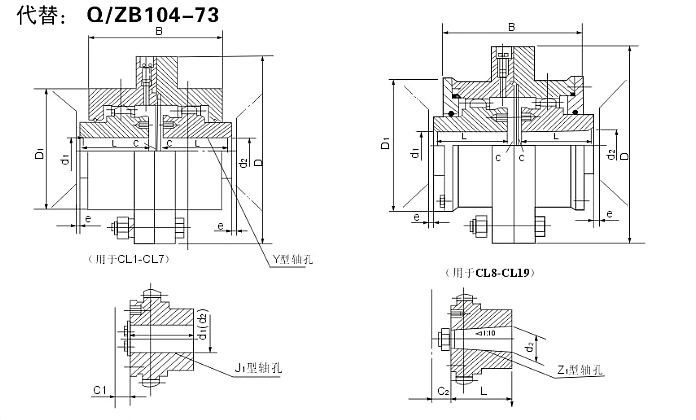

CL - the straight gear basic type is used for the direct connection of the two auxiliary ends.
CLZ - the straight gear type intermediate shaft type, used for two axis long distance connection

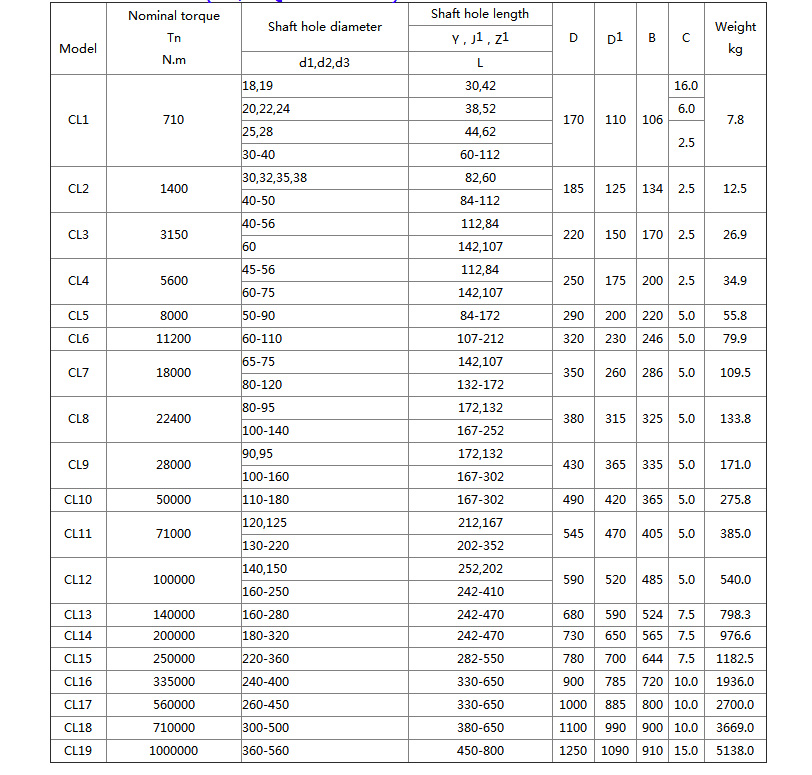

CL gear coupling Basic Parameters And Main Dimensions：(JB/ZQ 4218-86) mm
 |
